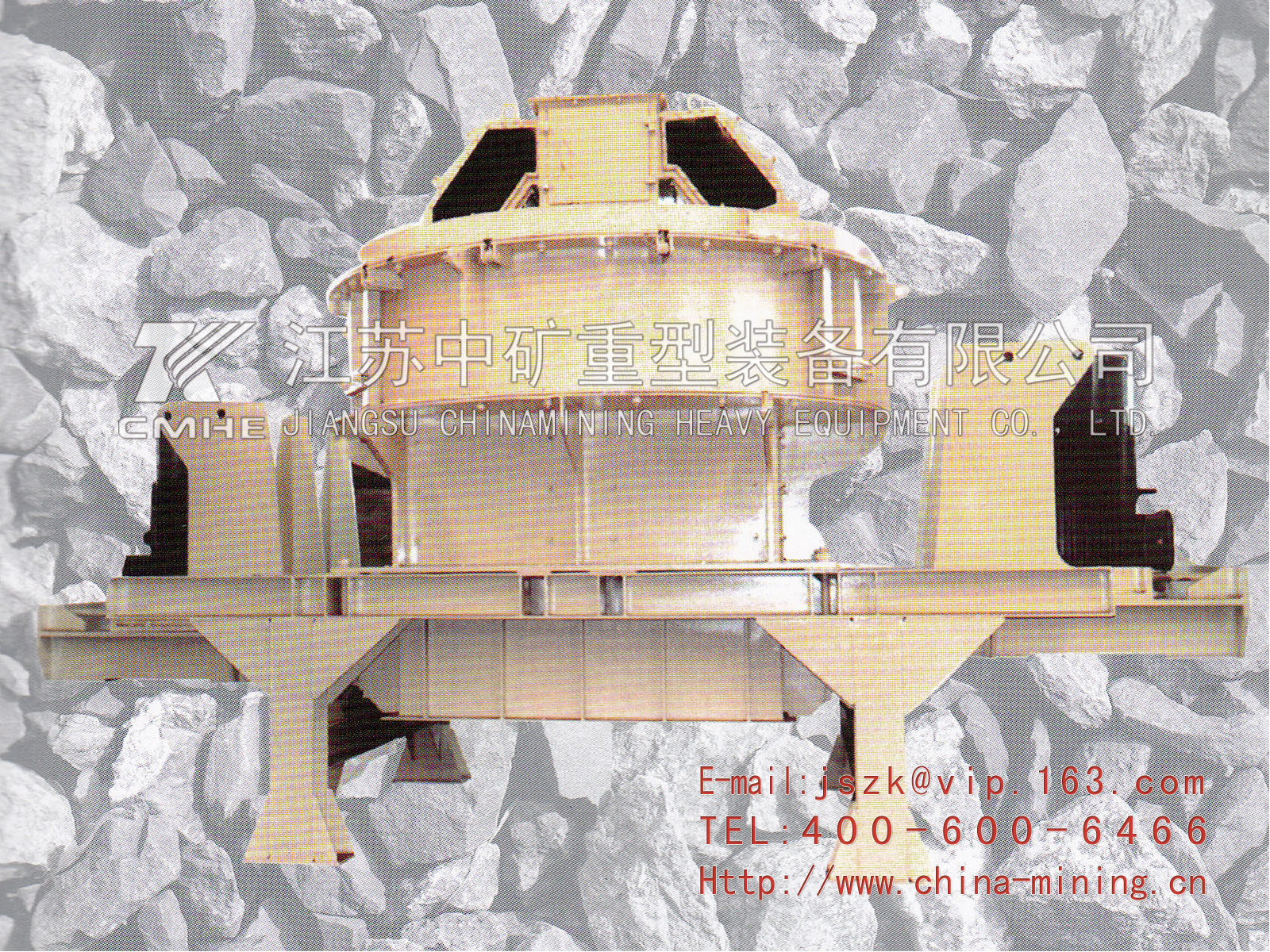

PS制砂機

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

產品描述：
PS系列制砂機是主動將玄武石、鵝軟石、安山石、花崗巖等骨材破碎，用干式法生產人工砂。本系列制砂機由機械本體，進料管，反擊板，帶有轉子的立軸以及電動機構成。在機械本體內部安裝的反擊板，由高鉻鑄鐵制成，耐磨性強，并不用螺栓緊固、更換方便。在物料投入口的兩側，安裝有空氣循環裝置，使轉子旋轉所產生的風，在循環裝置內循環，以減少排到外面的灰塵量。轉子裝有耐磨套襯墊板，以增加壽命，并可以減少機械本體磨損部件的數量，降低了運行成本。高速旋轉的轉子，由于調整了平衡，從而實現了低噪音，低振動。

PS series Sand Marking Machine is used for crushing, pebble, andesite, granite etc into manufactured sand by dry method. This series Sand Marking Machine consists of body, feeding tube, impacting plate. vertical shaft rotor and motor，The impaction plate is made from special high-Cr cast with high wearing property, fastening without bolts. easier replacing. Equipped with air circling unit reducing dust discharging. The rotor fitted with wearing pad to prolong service life, to reduce quantity of damageable parts and to reduce running cost. The high speed rotor is balanced to realize lower noise and lower vibration.

PS系列制砂機破碎原理
待破碎物料從頂部的物料投入口投入，落到高速旋轉的轉子中心部位。落下的物料在轉子的強大離心力作用下，以高速被拋出，撞擊到主機內部的反擊板被擊碎。在安裝反擊板時，使拋出的物料與反擊板成直角撞擊，以使發揮它優異的破碎性能。被粉碎的人工砂，從制砂機的下部排除機外。

The material to be crushed is fed into machine from the feed opening of top,and fall down onto the central section of rotor rotating with high speed.Then it is thrown out with high speed by the strong centrifugal force of rotor .colliding with the impacting plate and crushed.The installed impacting plate shall be colliding with material to be crushed in right angle giving full play of excellent crushing performance.The manufactured sand with proper size is discharging out below the machine.

產品特點Features
        ■優異的破碎性能；
        ■運行成本低：易損件少。高鉻鑄鐵或超硬合金制的易損件使用壽命長。反擊板可以上下顛倒再使用的同時，因安裝位置還可以調整，因此制砂的成品率局。易損件更換方便；
        ■可以達到降低公害的目的：低噪音及低振動。排泄到外面的灰塵少。

Excellent crushing performance;
Low running cost:Less damageable parts.Long service life of damageable parts(made from special high-Cr cast iron or hard alloy).Impacting plate may be adjusted and up side-down remounted.so the productivity higher.Easily replacing of damageable parts;
Environment friendly:Lower noise and lower vibration.Less dust discharging out.

■技術參數表I Technical Date

型號	給料尺寸上限 (mm )	轉子的外徑 (mm )	轉子的圓周速度 (m/s )	電機功率 (kw)	處理能力 (t/h)	重量 (kg )	外型尺寸(mm )
PS-1000	30	1040	60	132×2	180	17800	5710×2880×3150
				160×2	210
			70	110×2	130
				132×2	170
PS-1200	35		60	132×2	230	18500	5710×2880×3150
				160×2	260
		1235		185×2	280
			70	132×2	200
				160×2	240
				185×2	260

注：上表的能力是指堆密度為1.6t/m3的一般砂巖，安山巖作為破碎物料的情況下，數據會因物料的性質，水分等變化而變化。上表中所列的是可以破碎物料的給料尺寸上限，但從破碎效率和易損件的壽命考慮，希望提供<15mm (寬度尺寸)的物料。

Note:the value shown on above table is based on bulk of 1.6t/m3and taking andesite as example,the actual production may depend on actual material. moisture etc.In view of output and service life of damageable parts,it is better to feed material that 15 mm(width size).

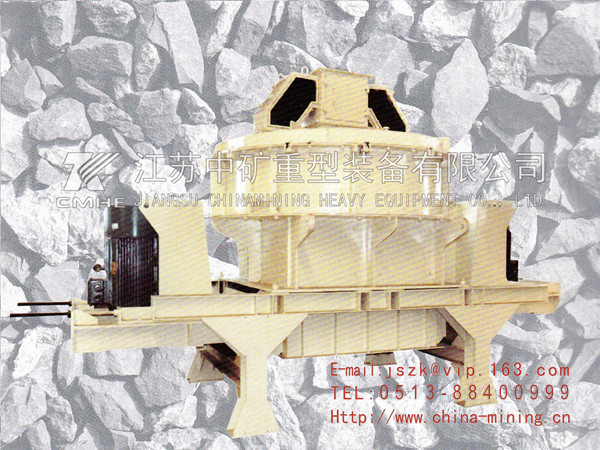

上一頁：PSZ砂石整形機
